FastServ

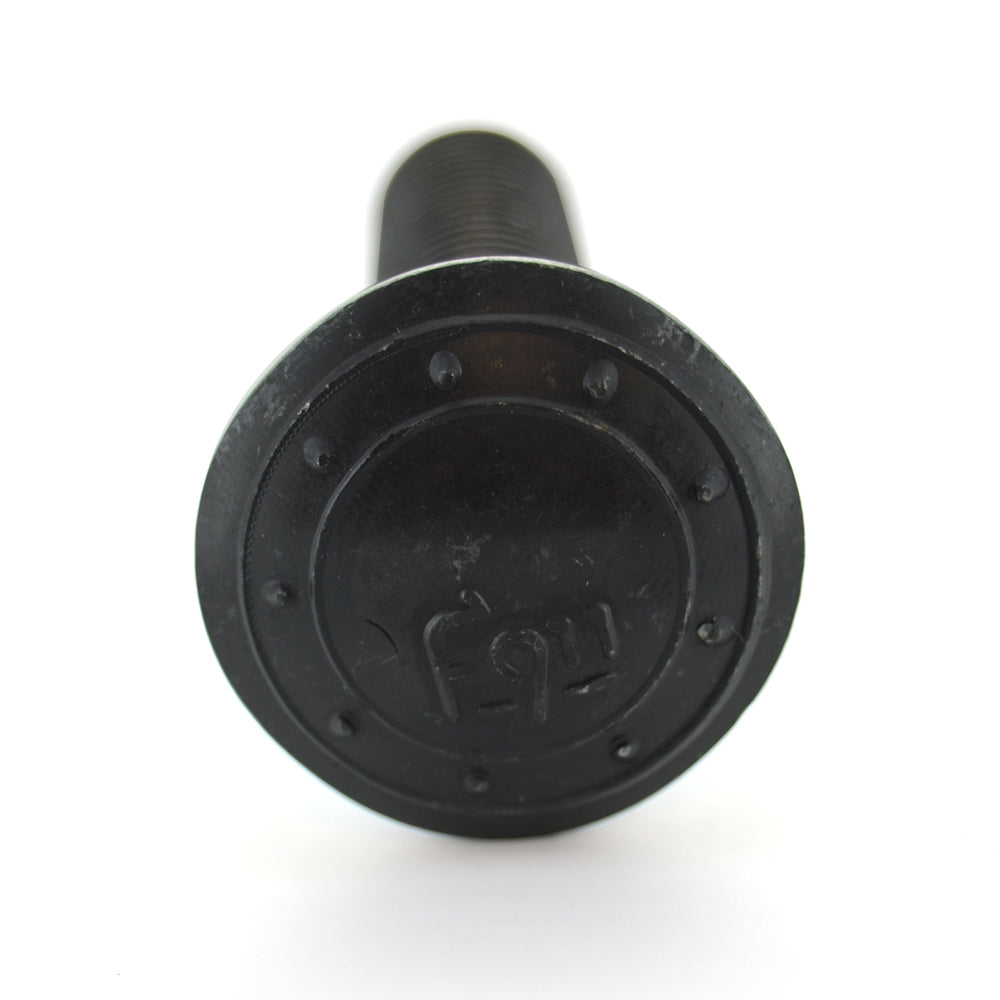

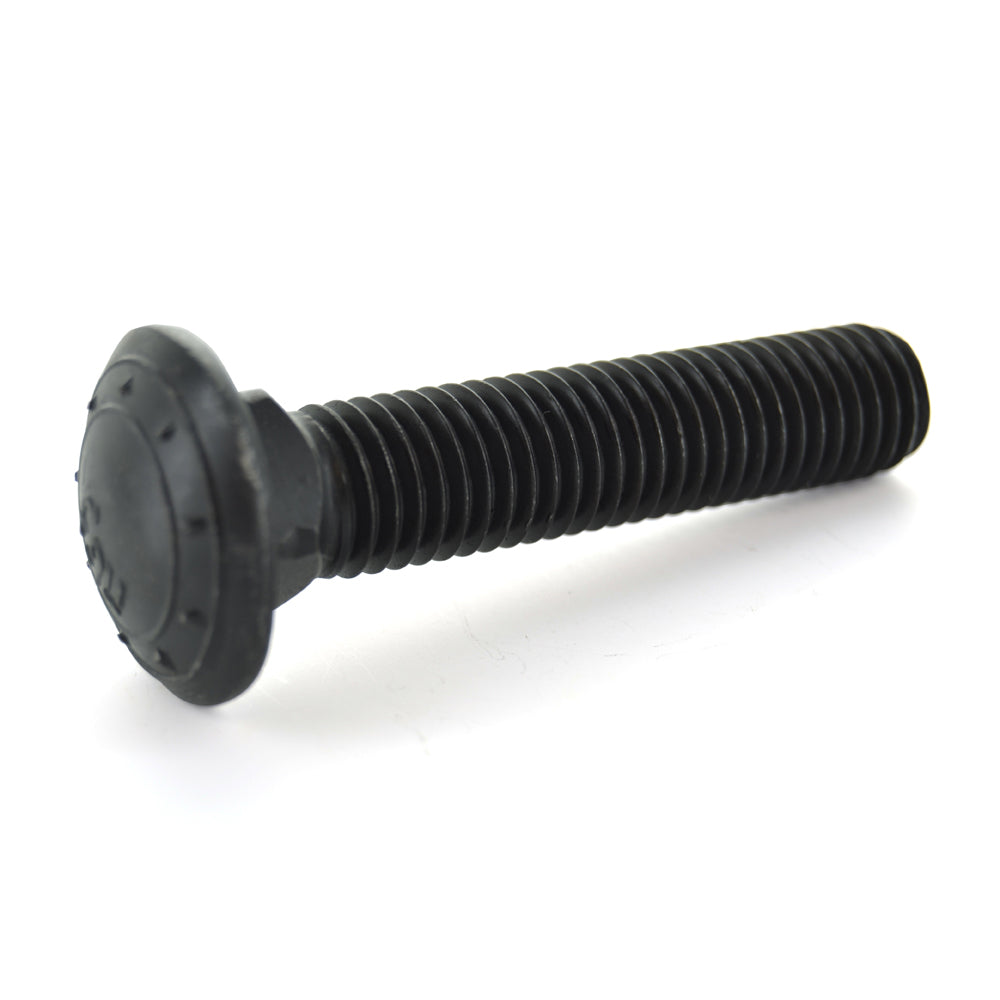

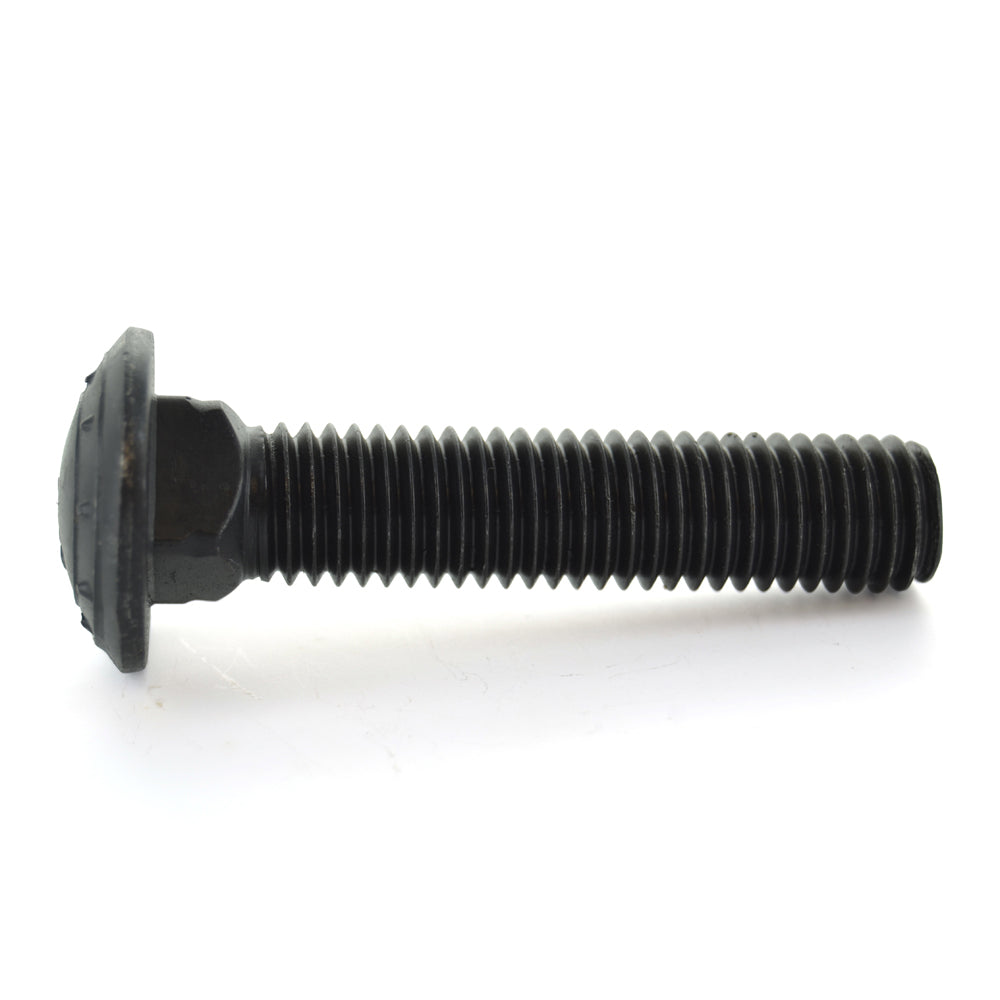

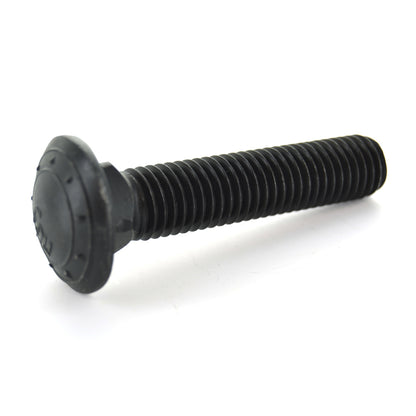

F911 Shaker Screw Bolt 3/4-10X5 Plain - Clearance

Item C36.0.34.5

We Stand Behind Our Products

If you are not satisfied, return within 90 days for a full refund.

Description

Specification: ANSI B1.1 1986

  • Origin: Imported
  • Also know as a coach bolt or round head square neck bolt carriage bolts are intended for use through iron strengthening plates on either side of a wooden beam
  • It is commonplace to use them into bare timber
  • Carriage bolts have a squared section under their round head that grip to prevent rotation
  • Diameter: 3/4 Inch
  • Finish: Plain
  • Grade: F911
  • Head Diameter: 1.469 - 1.594 Inch
  • Head Height: 0.375 - 0.406 Inch
  • Head Height Max: .406
  • Head Style: Round
  • Item: Shaker Screen Bolts
  • Length: 5 Inch
  • Material: Alloy Steel
  • Measurement: Inch
  • Origin: Imported
  • Specification: ASME/ANSI B18.12
  • Square Depth: 0.375 - 0.406 Inch
  • Square Width: 0.741 - 0.768 Inch
  • Thread Length: 5 Inch
  • Thread Type: Coarse
  • Threads Per Inch: 10
  • Type: Full Threaded
