FastServ

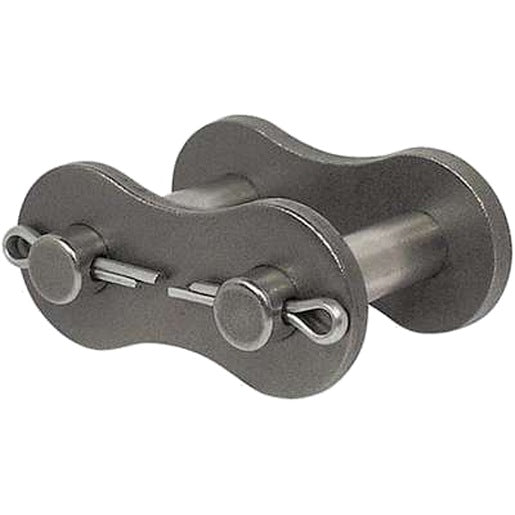

Chain Link; 100 Chain Size; Cottered; 1-1/4" Chain Pitch; Heavy Chain Series; 1 Strand; Carbon Steel; Ansi; 3/4" Roller Diameter; 0.744" Roller Width; 0.157" Plate Thickness; 0.945" Plate Height; Curved; 3/8" Pin Diameter

Item G67.03.100

We Stand Behind Our Products

If you are not satisfied, return within 90 days for a full refund.

Description

Roller chains consist of a strand of overlapping links with intersecting rollers that engage with the teeth of a compatible sprocket to transmit power between rotational shafts. They provide a more precise and controlled drive system over belts because they will not slip or wear. ANSI standard roller chains meet ANSI/ASME manufacturing specifications. British standard roller chains meet manufacturing specifications set by the International Standards Organization metric dimensions (ISO 606) British Standard (BS 228) and DIN 8187. Conveyor roller chains transport loads at low to moderate speeds over longer distances. Leaf chains install onto flat face pulleys not sprockets and are suitable for low-speed pulling lifting and balancing of heavy loads. Plastic roller chains do not require lubrication and prevent scratching of products in conveying applications.

  • Roller Width
  • 0.744 Inch | 18.9 Millimeter
  • Pin Diameter
  • 0.375 Inch | 9.525 Millimeter
  • Roller Diameter
  • 0.75 Inch | 19.05 Millimeter
  • Plate Height
  • 0.945 Inch | 24.003 Millimeter
  • Chain Pitch
  • 1.25 Inch | 31.75 Millimeter
  • Plate Thickness
  • 0.157 Inch | 3.988 Millimeter
