FastServ

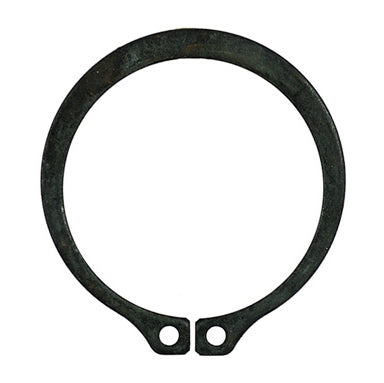

2-3/8 Inch Black Phosphate Carbon Spring Steel External Snap Ring

Item E36.238

We Stand Behind Our Products

If you are not satisfied, return within 90 days for a full refund.

Description

From cap screws to hitch pins we are a master distributor for fasteners of all types. Available in inch and metric sizes we are your single source solution. Additionally we offer both domestic and imported options for most fastener types.

  • Plating; Phosphate
  • Material: Carbon Spring SteelAllowable Corner Chamfers: 0.060 Inch
  • Allowable Corner Radii: 0.100 Inch
  • Clearance Diameter Released in Groove: 2.930 Inch
  • Edge Margin: 0.204 Inch
  • Finish: Black Phosphate
  • Gaging Diameter: 2.591 Inch
  • Groove Depth: 0.068 Inch
  • Groove Diameter: 2.239 Inch
  • Groove Diameter to Shaft Concentricity: 0.006 Inch
  • Groove Diameter Tolerance: +/-0.006
  • Groove Width: 0.086 Inch
  • Groove Width Tolerance: +0.005/-0.000
  • Hardness: HRC 47-52
  • Hole Diameter: 0.125 Inch
  • Hole Diameter Tolerance: +0.015/-0.002
  • Item: External Snap Ring
  • Lug Height: 0.292 Inch
  • Lug Height Tolerance: +/-0.005
  • Material: Carbon Spring Steel
  • Maximum Section: 0.224 Inch
  • Maximum Section Tolerance: +/-0.007
  • Measurement: Inch
  • Minimum Section: 0.119 Inch
  • Minimum Section Tolerance: +/-0.007
  • Radial Wall Thickness: 0.119 - 0.224 Inch
  • Ring Free Diameter: 2.197 Inch
  • Ring Free Diameter Tolerance: +0.015/-0.015
  • Shaft Diameter: 2-3/8 Inch
  • Thickness: 0.078 Inch
  • Thickness Tolerance: +/-0.003
  • Type: Stamped Standard Duty

Photographs are representational and may not be size accurate.

Key Specifications
Material Spring Steel
Measurement Inch
