FastServ

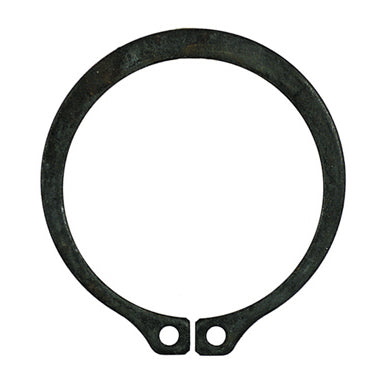

15/16 Inch Black Phosphate Carbon Spring Steel External Snap Ring

Item E36.11516

We Stand Behind Our Products

If you are not satisfied, return within 90 days for a full refund.

Description

From cap screws to hitch pins we are a master distributor for fasteners of all types. Available in inch and metric sizes we are your single source solution. Additionally we offer both domestic and imported options for most fastener types.

  • Plating; Phosphate
  • Material: Carbon Spring SteelAllowable Corner Chamfers: 0.033 Inch
  • Allowable Corner Radii: 0.055 Inch
  • Clearance Diameter Released in Groove: 1.290 Inch
  • Edge Margin: 0.084 Inch
  • Finish: Black Phosphate
  • Gaging Diameter: 1.054 Inch
  • Groove Depth: 0.028 Inch
  • Groove Diameter: 0.882 Inch
  • Groove Diameter to Shaft Concentricity: 0.004 Inch
  • Groove Diameter Tolerance: +/-0.003
  • Groove Width: 0.046 Inch
  • Groove Width Tolerance: +0.003/-0.000
  • Hardness: HRC 47-53
  • Hole Diameter: 0.078 Inch
  • Hole Diameter Tolerance: +0.015/-0.002
  • Item: External Snap Ring
  • Lug Height: 0.166 Inch
  • Lug Height Tolerance: +/-0.004
  • Material: Carbon Spring Steel
  • Maximum Section: 0.110 Inch
  • Maximum Section Tolerance: +/-0.005
  • Measurement: Inch
  • Minimum Section: 0.063 Inch
  • Minimum Section Tolerance: +/-0.005
  • Radial Wall Thickness: 0.063 - 0.110 Inch
  • Ring Free Diameter: 0.867 Inch
  • Ring Free Diameter Tolerance: +0.005/-0.010
  • RPM Limits: 21500 RPM
  • Shaft Diameter: 15/16 Inch
  • Thickness: 0.042 Inch
  • Thickness Tolerance: +/-0.002
  • Type: Stamped Standard Duty

Photographs are representational and may not be size accurate.

Key Specifications
Material Spring Steel
Measurement Inch
