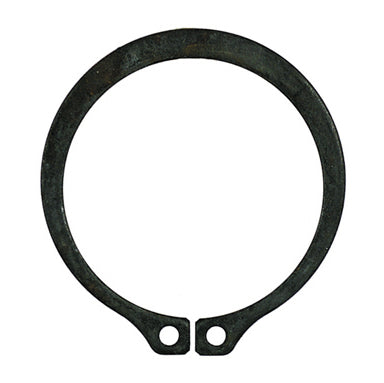

1-7/16 Inch Black Phosphate Carbon Spring Steel External Snap Ring

Item E36.1716

We Stand Behind Our Products

If you are not satisfied, return within 90 days for a full refund.

Description

From cap screws to hitch pins we are a master distributor for fasteners of all types. Available in inch and metric sizes we are your single source solution. Additionally we offer both domestic and imported options for most fastener types.

  • Plating; Phosphate
  • Material: Carbon Spring SteelAllowable Corner Chamfers: 0.045 Inch
  • Allowable Corner Radii: 0.076 Inch
  • Clearance Diameter Released in Groove: 1.790 Inch
  • Edge Margin: 0.132 Inch
  • Finish: Black Phosphate
  • Gaging Diameter: 1.600 Inch
  • Groove Depth: 0.044 Inch
  • Groove Diameter: 1.350 Inch
  • Groove Diameter to Shaft Concentricity: 0.005 Inch
  • Groove Diameter Tolerance: +/-0.004
  • Groove Width: 0.056 Inch
  • Groove Width Tolerance: +0.004/-0.000
  • Hardness: HRC 47-52
  • Hole Diameter: 0.078 Inch
  • Hole Diameter Tolerance: +0.015/-0.002
  • Item: External Snap Ring
  • Lug Height: 0.184 Inch
  • Lug Height Tolerance: +/-0.004
  • Material: Carbon Spring Steel
  • Maximum Section: 0.160 Inch
  • Maximum Section Tolerance: +/-0.006
  • Measurement: Inch
  • Minimum Section: 0.086 Inch
  • Minimum Section Tolerance: +/-0.006
  • Radial Wall Thickness: 0.086 - 0.160 Inch
  • Ring Free Diameter: 1.333 Inch
  • Ring Free Diameter Tolerance: +0.010/-0.015
  • RPM Limits: 15000 RPM
  • Shaft Diameter: 1-7/16 Inch
  • Thickness: 0.050 Inch
  • Thickness Tolerance: +/-0.002
  • Type: Stamped Standard Duty
